Description
Main package of WeMacro rail(100mm)model PRO 100
STANDARD PACKAGE PARTS LIST
1,Power supply(Power plug types vary by region.);
2,USB cable;
3,Power bank power cable (works with a portable phone power bank for field use)
4,Controller
5,Rail(model Pro 100 ) and quick release clamp
6,Hex wrench and nylon screws (the wrench can be used to assemble/disassemble the quick-release clamp; the nylon screws can provide basic front-end support for certain lens mounts. For better results, please use a ring support or tube lens).

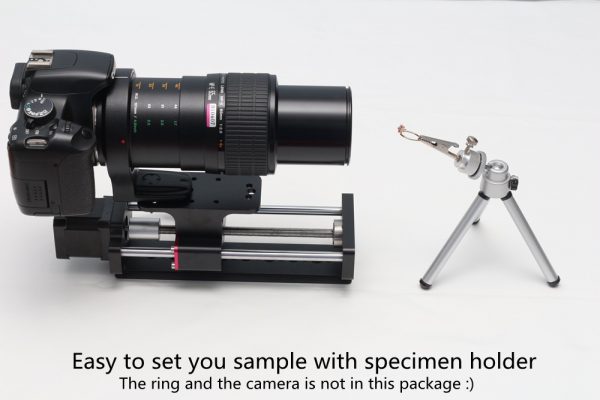

7,Shutter extension cable
8,Motor cable
9,Motor reverse direction cable
10，Sample holder
*The shutter release cable is not shown in this image; it will be included based on your actual selection.
For more details, please view our website.
The WeMacro rail has a unique design and high-quality plug, ready to face any circumstance.
There are 2 1/4 inch threaded holes and two 3/8-Inch-16 threaded holes at the front of the rail, which can be used to install auxiliary tools such as magic arms.
Very convenient to use in the field.
Multi points are used to support the lens, particularly tube lenses with infinity corrected objectives. The lens body can be heavy, and the center of gravity may amplify vibrations from the camera’s mirror. To address this, we provide two M5 threaded holes which can support the lens and reduce vibration. If your lens is long, we strongly recommend adding a ring support to your cart, which will provide much more stable support for the lens. This is demonstrated with the Laowa 25mm lens.
(https://www.wemacro.com/?product=ring-support-for-lens)
If you require the best solution for a tube lens from WeMacro shop, we recommend the Raynox tube lens Pro solution (which is not included in this package).
We provide a power bank cable for free in the package. This cable, along with a power bank, will supply power to the controller. If you plan to try stacking outside, this accessory will be very helpful. Please note that this is a standard accessory in WeMacro rail packages, but the power bank itself is not included.
Shutter release cable type
1C
Canon EOS R6,R7,R10,R,RP, 1100D(Rebel T3), 700D(T5i), 650D(T4i), 600D(T3i),60Da, 60D,70D,80D,90D, 550D(T2i), 500D (Digital Rebel T1i), 1000D (Digital Rebel XS),77D, 450D (Digital Rebel XSi ), 400D (Digital Rebel XTi ), 350D (Digital Rebel XT), 300D (Digital Rebel), Canon EOS 30, 33, 50, 50E, 300V, 300, 3000,EOS M5,M6,M6 II…etc;
PowershotG15,G12,G11,G10,G1X;
PENTAX K-1/K500/K-3II/K100D Super/645D/K-50/645Z/K5II/K-5IIs/K3/K100D/K110D/K10D/ist DS2/K20D/K7/ist Ds/ist/ist DL/MZ-6/ZX-L/MZ-L/ist DL2/K5/K30/KX；
Olympus: Em-1 Mark II,OM-1 ,OM-1 Mark II,EM1 Mark III,E-M1X，E-M5 Mark III，
Fujifilm X-T3，X-T4，XH1 X-T10,X-T20,X-T30,GFX100，GFX100SII，GFX100S，GFX50SII，GFX50S，GFX50R
3C
Canon:EOS R3, R5,6D,6D II, 7D,7D Mark II, 50D, 40D, 30D, 5D, 20D, 10D, 5D Mark II, 5D Mark III,5D IV,5Ds,5DsR, 1D X, 1D Mark IV,1Ds Mark III, 1D Mark III, 1D Mark II N, 1Ds Mark II, 1D Mark II.
1N
Nikon: Z9,D850,D4, D3X, D3, D700, D800, D800E, D700, D300S, D300, D200;D810;D500
3N
Nikon:Z6,Z7,D600, D3200,D3300, D3100, D5100,D5200, D7000, D7100,D7200, D5000, D90,D750,D90,D5300,D610,D5500,D7500,D5600,Z6 II,Z7 II
DC3
Nikon:Z50 II,Z5 II
J
Olympus:EM10 MarkII,EM1,E-620,E-600,E-550,E-520,E-450,E-420,E410,E-100,E-30,E-PM1,E-M5,E-M5 II,E-PL2,E-PL3,E-P3,EP-2,EP-1,SP-590UZ,570UZ,565UZ,560UZ,550UZ,510UZ,810UZ,SZ-30MR,SZ-20,SZ-11，PEN-F
S2
Sony :A7R3,A7R4,A58 NEX-3NL A7 A7MII A7MIII A7R A7R2 A7S A3000 A5000 A6000 HX300 HX50V RX100II RX100III,A9,A1
Type-C
SONY :A7C2,A6700, ZV-E1, ZV-E10II,A7M5
E3
Fuji X-Pro2,X-E2S,X70,X-T10,X30，X100T，X-T1，X-T2，X-E2，FinePixS1,X-M1,X-A1,XQ1,X-A2,XQ2，XH1,X-T10,X-T20
S1
Sony：A900 A700 A850 A550 A500 A450 A400 A350 A300 a200,a100,a99、a77、a65、a57、a55、a35、a33
L1
Panasonic：DMC-FZ50, DMC-FZ50K, DMC-FZ50S, DMC-FZ30, DMC-
FZ30K, DMC-FZ30S, DMC-FZ20, DMC-FZ20K, DMC-FZ20S,LC-1,L1.G1 GH1 GF1 GH2 G3 GH3 GH4 GX7,S1R,G9
Please choose K70 if your camera is Pentax K70,KP.
If you require a different type of shutter release cable or more types of cables, please view our accessories page.
If your camera does not have a shutter cable connector, we recommend using Helicon Remote control or controlling it with the latest version of the Wemacro program for Windows systems. (Please refer to the demo on the (download page)
The body of rail is 1.3 kg
