Detail installation step on MacOS

Please download the driver and program on the download page first

The first part (install driver.)

If your Mac is Mojave system,please skip the installation of driver.The MacOS alread build-in it.This page show an example to install the factory driver and USB control program on MacOS Mojave.Earlier MacOS system can also refer this steps.

Please notice “CH341SER_MAC”is driver for earlier than 2019 Jan version controllers.To download the controller driver after 2019 Jan,please visit (https://www.ftdichip.com/Drivers/VCP.htm)For MacOS X 10.9 and above,please download  and install  2.4.2

Step 3 Restart to finish the  installation of driver.

You can check it by press “command+shift+G”go to the extensions folder

As below

The second part:Install the program:(It can be download here Mac OS USB control download )

Then we start to install the control program for USB

Double click the DMG file ,there will be a folder on the desktop“Untitled”

Please notice that if you drag the icon of WeMacro on the desktop to trash,it will not be in the folder of untitled.Please download it again.

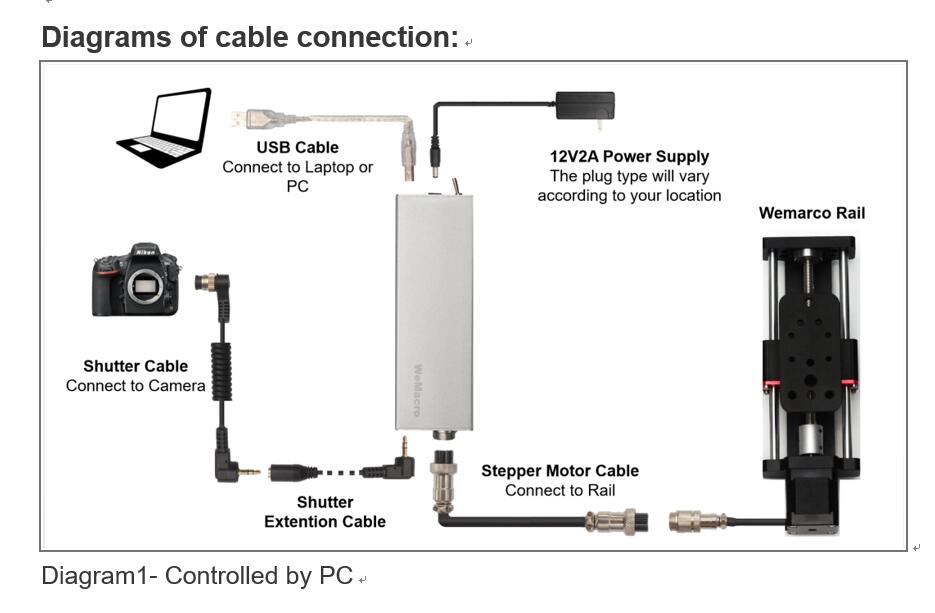

Before double click the icon of WeMacro,please make sure the controller had been turned on and connect as below

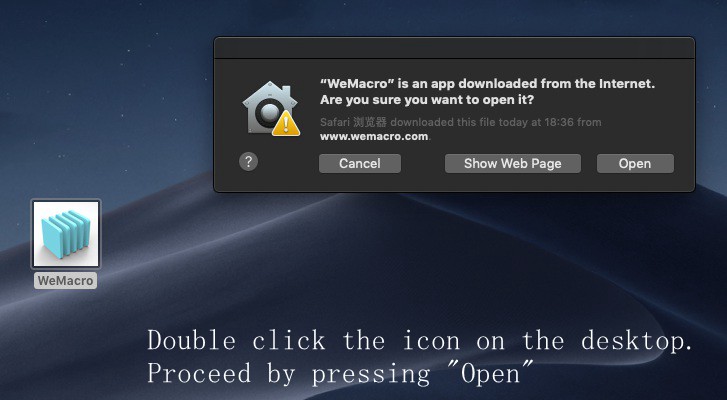

Then double click the icon of WeMacro it will show as below.Press Re-scan

The installation is complete.Please press “Shutter” to test if you hear the click sound come out from the controller.
