Vertical stand(2.0)

$109.00$129.90

Clear
SKU: WVH01 Category:

Description

Link: Complete progress of installation

To set the Rail work in vertical position.It can help in stacking sands or plant seed,etc.

The stand can work in vertical and horizontal position both now,if you need,please choose “vertical and horizontal” in option.

4 Way slider can adjust the sample easily.There is 6 1/4 inch threaded hole can set such as magic arm or flash light.

The rail can install on the stand by screws or on the quick clamp.

4  rubber footpads can reduce vibration from camera.

The base of the stand is 27 cm*17 cm,minimize footprint on desktop area with good stability.(Smaller than A4 paper!)

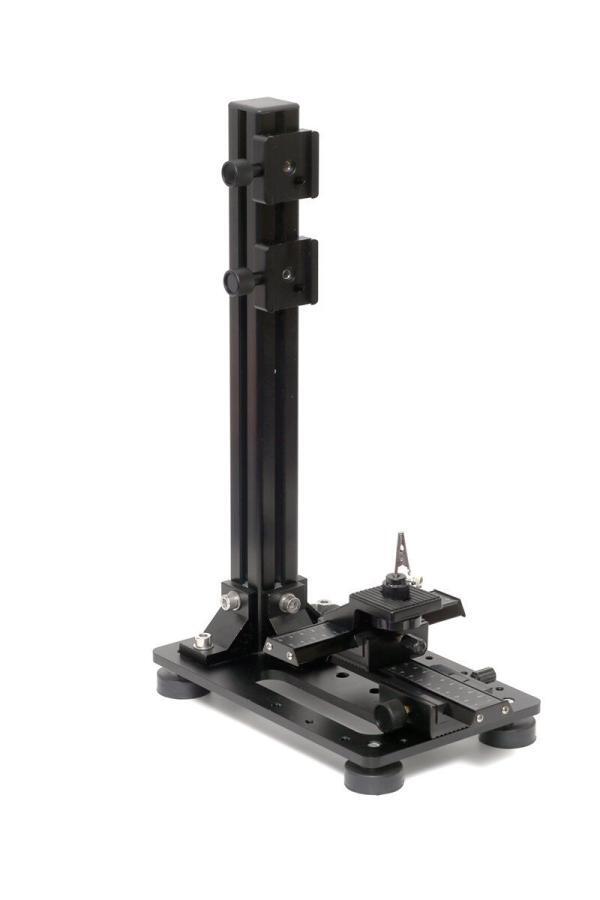

Vertical stand(Parts contain as the picture as below,There is two Allen wrench in the package for installation. )

If you want to use fine X-Y adjustment platform on this stand,please use 2 way slider.Because 4 way slider might be too high for some samples.

Please notice that the pillar itself is 42cm high.The quick release clamp is the version in the first picture of this page.

Parts contain as the  below picture(without the rail):

Notice:User can add a 1/4 inch screw or other type screw on the rail base to prevent unexpected falling.As the picture show.

Work with a camera and Takumar 200F4 as tube lens and an infinite objective lens





Work with magic arm(11 inch)The magic arms are not included in the package.



Dimension







Please notice that  on the black pillar there are some small scratch.It’s very hard to avoid in making.But the black color has lower reflection in shooting.



Demo in horizontal position.(The rail is not included.)

When it work with MP-E65 and Fine XY platform  in horizontal position



The main parts to upgrade the vertical stand to horizontal

200 mm  quick plate,L shape corner,1/4 inch screw,female 1/4 inch  to M8 adapter and nut in pillar.

The quick release clamp on the pillar for now.

If you need wider moving  range for the rail on the pillar ,please add one more this kind of clamp in our shop.

Such as

4way slider can be converted to 2 way slider by using a slot type screwdriver or Hex key.





Additional information

Weight 3.5 kg
Dimensions 17 × 27 × 48 cm
Pillar setting

Vertical only, Vertical and horizontal
