MicroMate (bracket only)

$149.00$169.00

SKU: N/A Category:

Description

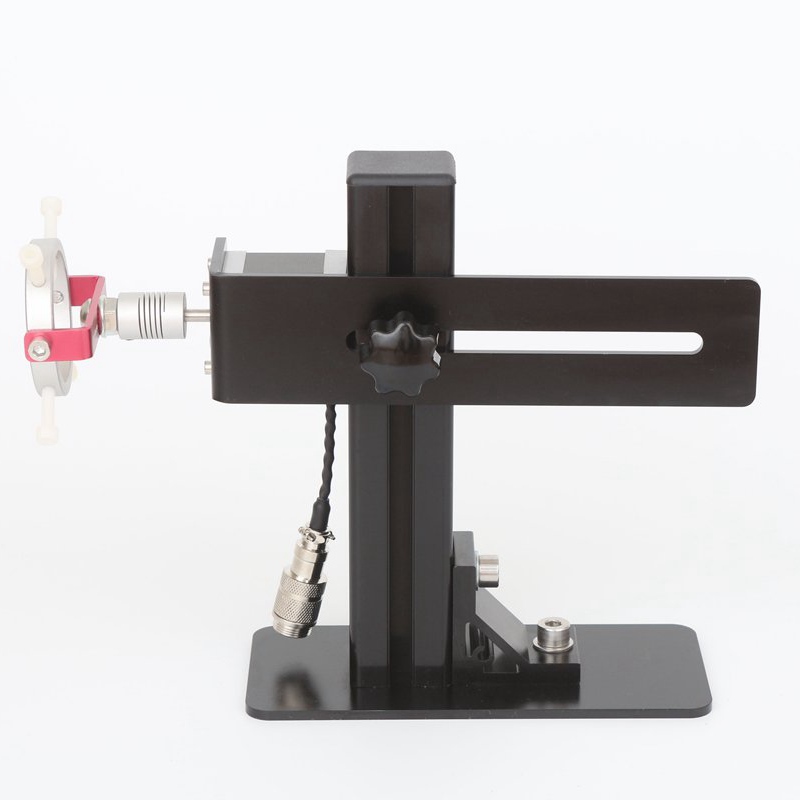

MicroMate is specially designed for microscope focus stacking.The motor on MicroMate is 400 step 0.9 degree.

The hight of motor can be adjusted as 2cm-18cm(It depends on the fine adjustment knob height)

This package contain  as below:

1, MicroMate  bracket(400 step motor on it.)

2,Stepper motor cable( about 1m)

3,Reverse motor cable(It’s better to let objective lens leave the sample in stacking)

When the step length set as 1 micron in software,it will take 2132 steps make a full circle.

If the fine adjust focus of microscope rotate one circle as 500 micron.The minimum step is 500/2132 ≈0.23 micron as a step.If the step length set as 5 micron,the  real step is 500/400 =1.25 micron as a step.

If the fine adjust focus of microscope rotate one circle as 200 micron.The minimum step is 200/2132 ≈0.09 micron as a step.

Please notice this product link is only for those who already have WeMacro rail set.If you wish to connect this bracket to a stackshot controller, please contact us, we have the corresponding solution



Manual download





Additional information

Weight 2 kg
wemacro plug

”wemacro plug”, ”stackshot plug”
